discussion Guide Turn Off Default HUD Disable GTA V HUD

[Admin]

Disable the default GTA V HUD in FiveM to create a clean UI experience for roleplay and custom servers. Use this simple script to remove the default radar, health, and armor bars. Compatible with qb-core and ESX.

What is the Default HUD in FiveM?​

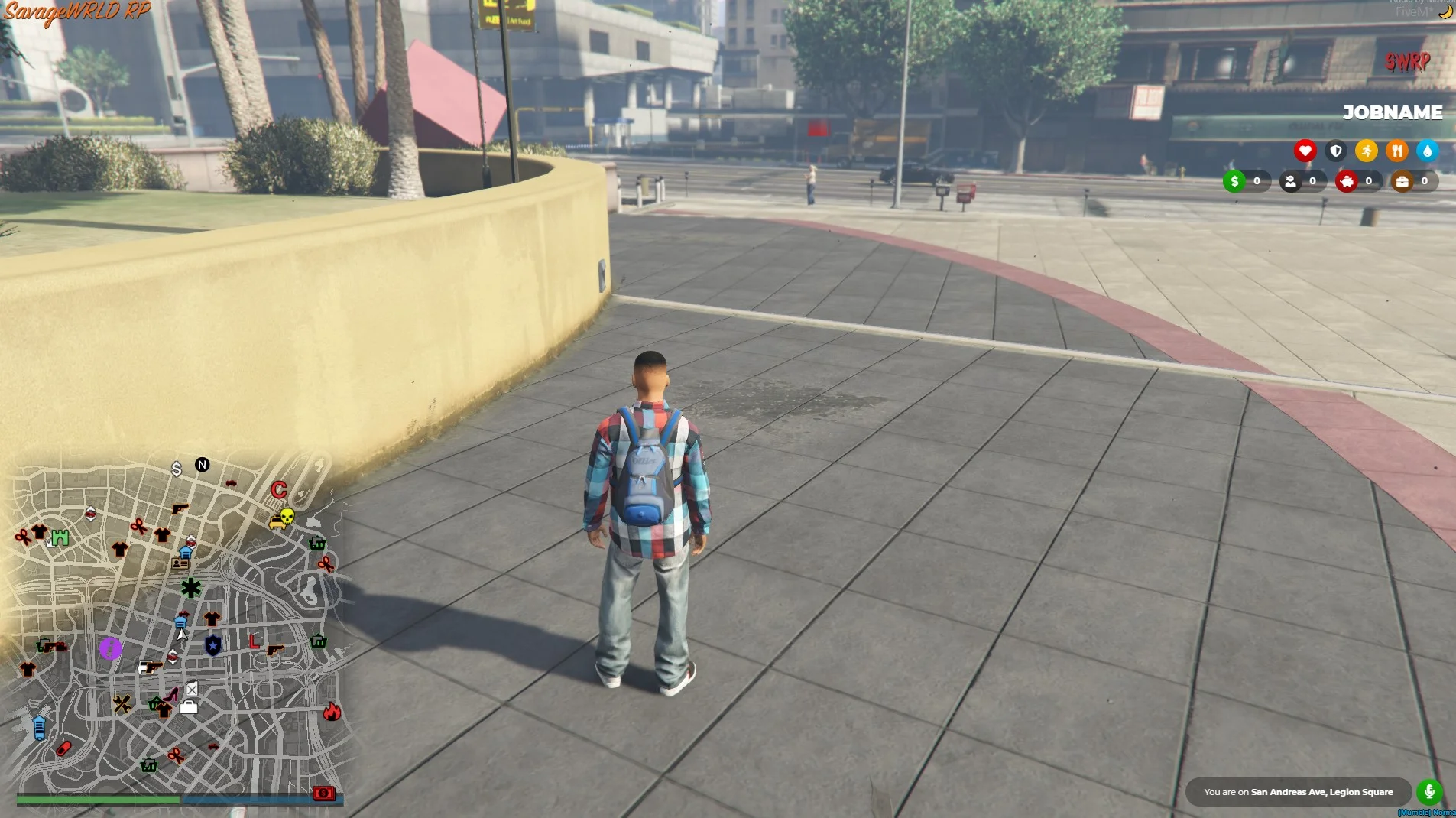

By default, FiveM uses GTA V’s native HUD, which includes the radar, health bar, armor bar, and wanted level display. However, many roleplay and custom servers prefer to disable the default HUD and use a custom UI instead. This guide will show you how to completely remove the default HUD in FiveM.

​

How to Disable the Default GTA V HUD in FiveM​

Step 1: Copy the Code​

Paste the following code inside your client.lua file:

Citizen.CreateThread(function()
    while true do
        Citizen.Wait(1)

        if not IsAimCamActive() or not IsFirstPersonAimCamActive() then
            HideHudComponentThisFrame(14)
        end

        if IsHudComponentActive(1) then
            HideHudComponentThisFrame(1)
        end

        if IsHudComponentActive(6) then
            HideHudComponentThisFrame(6)
        end

        if IsHudComponentActive(7) then
            HideHudComponentThisFrame(7)
        end

        if IsHudComponentActive(9) then
            HideHudComponentThisFrame(9)
        end

        if IsHudComponentActive(0) and not IsPedInAnyVehicle(PlayerPedId(), true) then
            HideHudComponentThisFrame(0)
        end

        SetPlayerHealthRechargeMultiplier(PlayerId(), 0.0)
    end
end)

Citizen.CreateThread(function()
    while true do
        Citizen.Wait(800)
        local playerPed = PlayerPedId()
        local vehicle = GetVehiclePedIsTryingToEnter(playerPed)

        if vehicle and DoesEntityExist(vehicle) then
            local driverPed = GetPedInVehicleSeat(vehicle, -1)

            if GetVehicleDoorLockStatus(vehicle) == 7 then
                SetVehicleDoorsLocked(vehicle, 2)
            end

            if driverPed and DoesEntityExist(driverPed) then
                SetPedCanBeDraggedOut(driverPed, false)
            end
        end
    end
end)

Step 2: Add the Code to Your Client Script​

• Navigate to your FiveM server’s client-side resources.
• Open or create a client.lua file.
• Paste the above script inside the file.

Step 3: Restart Your Server​

After adding the script, restart your FiveM server for the changes to take effect.

• If you’re running a qb-core or ESX server, make sure the script is properly integrated into your resource structure.
• If the HUD is still showing, ensure that no other scripts are forcing the HUD to be enabled.
